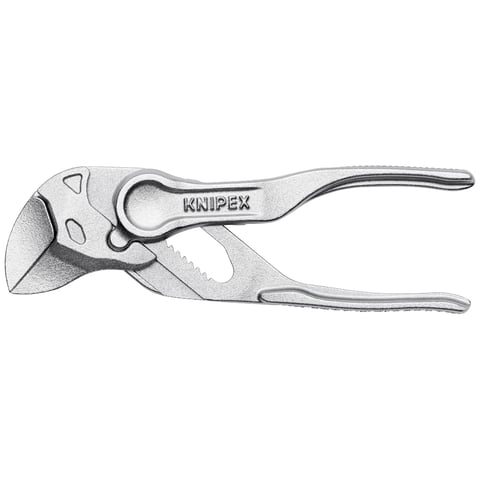

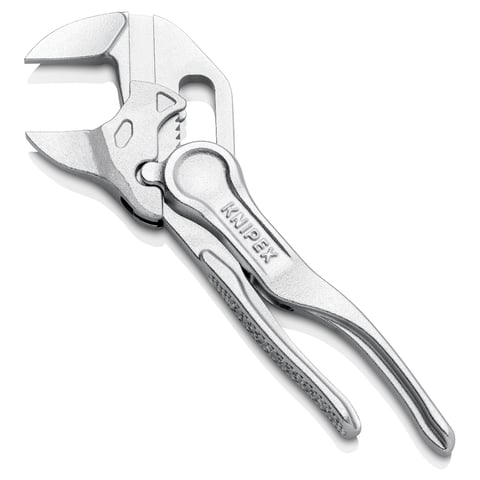

86 04 100
Pliers Wrench XS
Pliers and a wrench in a single tool

smooth gripping surfaces

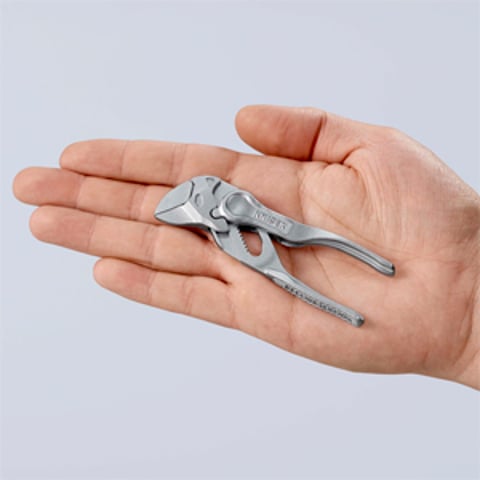

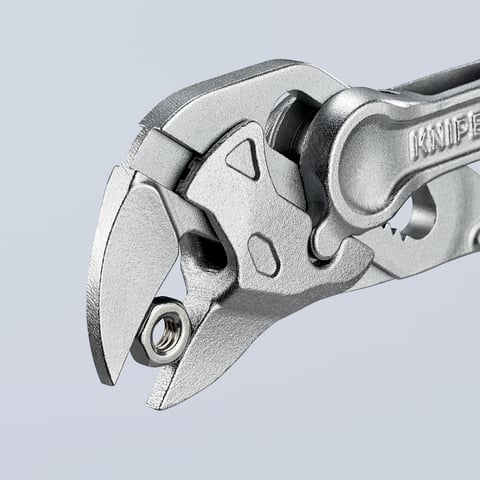

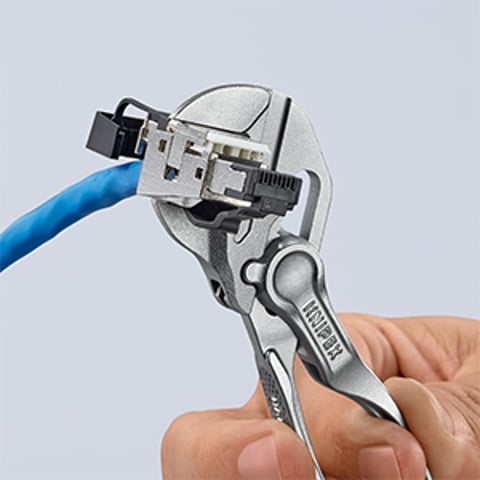

  • Optimum accessibility, even in confined spaces: particularly compact design, very slim head
  • One-handed fine adjustment by pushing for the simplest adjustment to different workpiece sizes

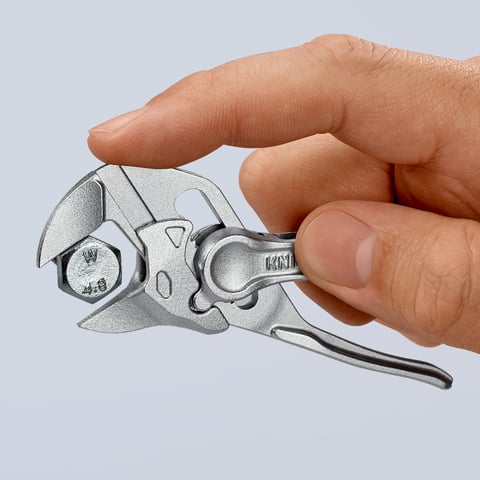

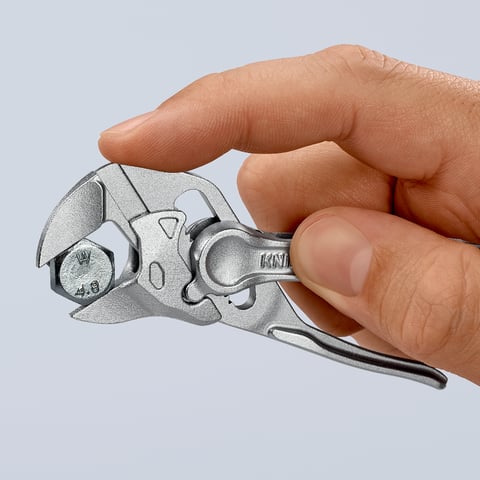

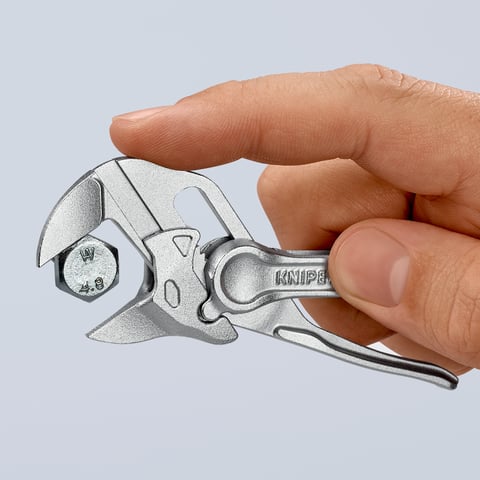

  • Enormous gripping capacity with a tool length of only 100 mm; parallel jaw opening grips continuously up to 21 mm width across flats
  • Robust sliding joint offers high stability and resilience

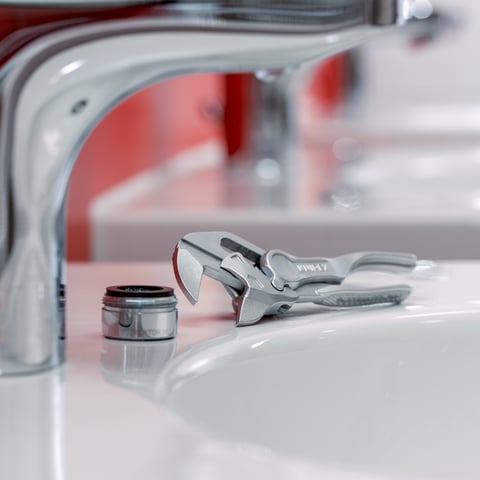

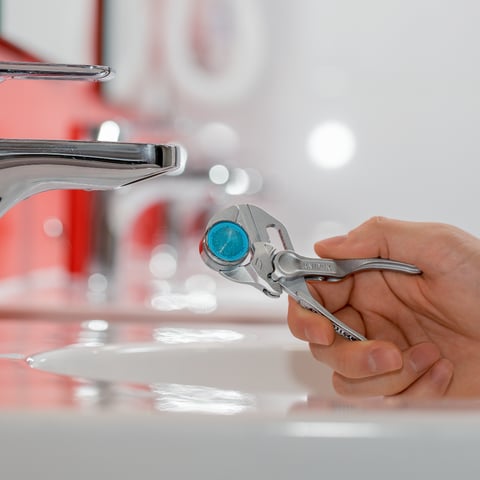

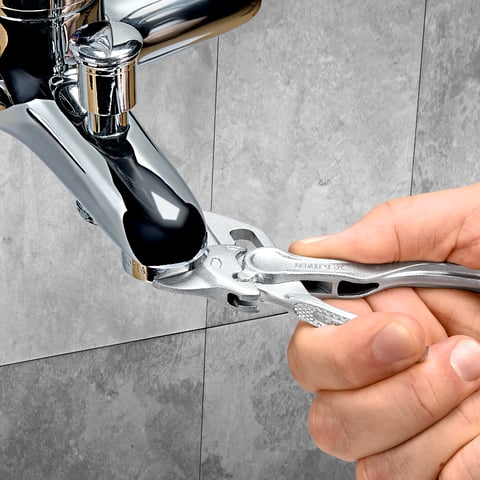

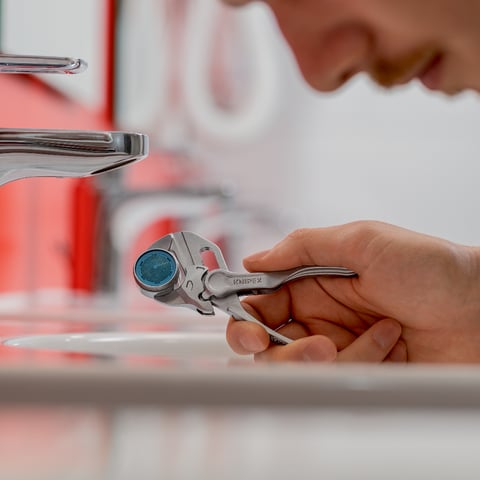

  • Smooth jaws for the gentle assembly of sensitive fittings and parts with delicate surface finishes: can be used directly on chrome due to the smooth full-surface contact

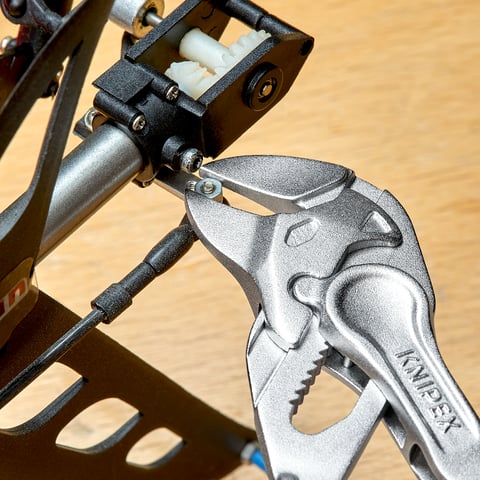

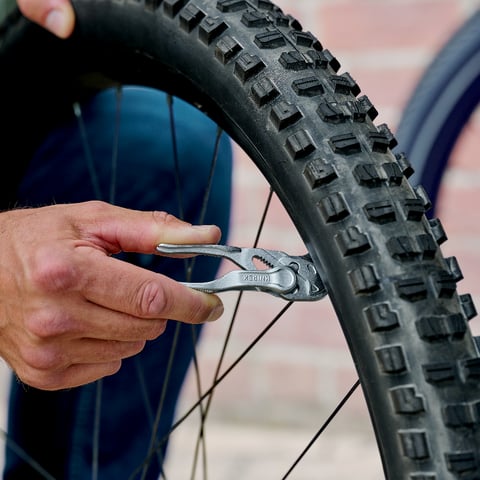

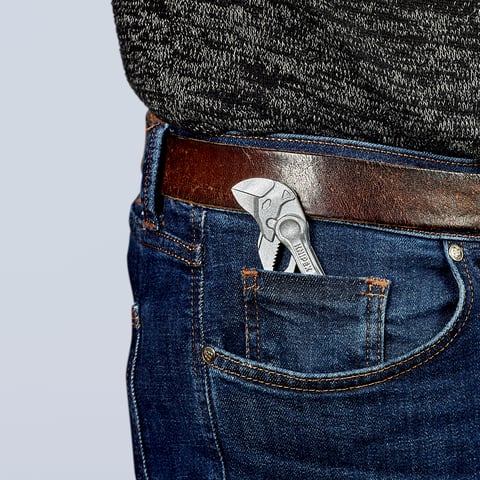

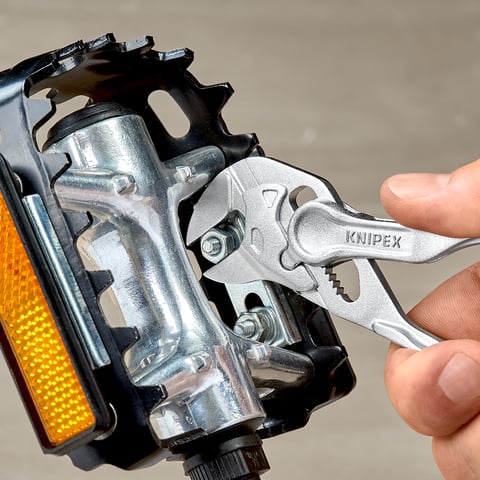

  • Versatile areas of application: precision engineering, plumbing, an essential part of any bicycle or motorcycle toolkit, EDC (Every Day Carry), model making
  • Pinch guard prevents operators' fingers being pinched
  • Fine adjustment with 10 adjustment positions
Technical attributes
Article No.
86 04 100
EAN
4003773087281
Pliers
chrome-plated
Head
chrome-plated

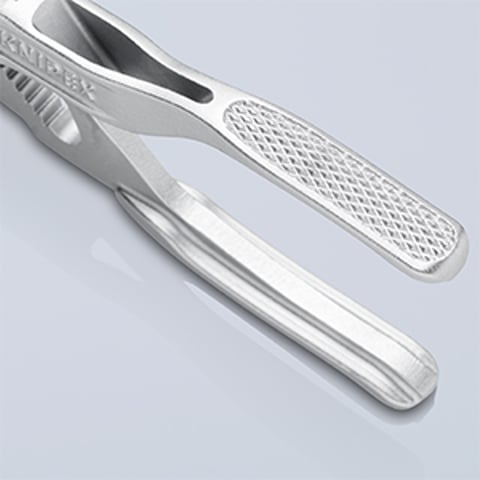

Handles
embossed, rough surface
Weight
70 g
Dimensions
100 x 31 x 10 mm
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Adjustment positions
10
Capacities for nuts
Ø 3/4 Inch
Capacities for nuts
21 mm

Article 86 04 100 in Set

00 20 72 V04 XS
Mini Pliers Set XS in Belt Pouch 1 x 87 00 100, 1 x 86 04 100
00 18 01 V42
Counter Display 12-piece
6 x 90 31 02 SB
Technical changes and errors reserved.
