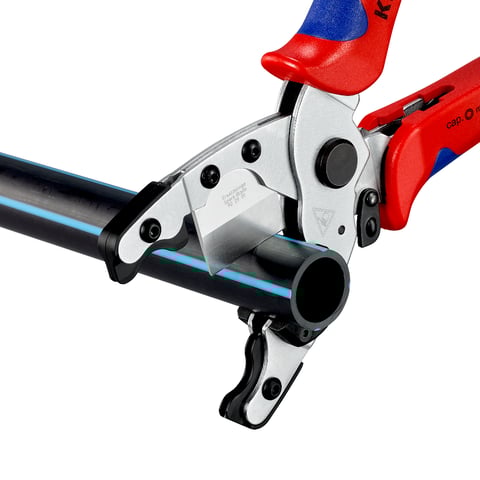

- For cutting composite pipes up to Ø 26 mm

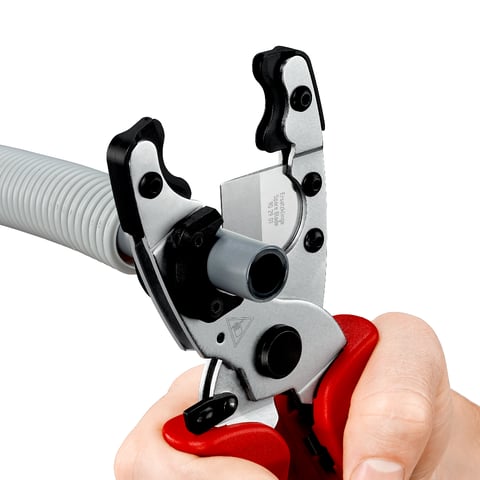

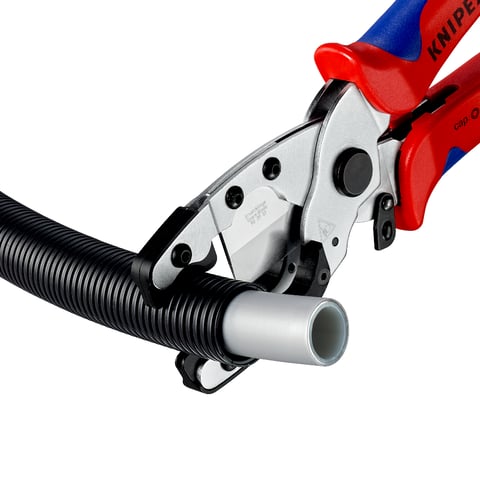

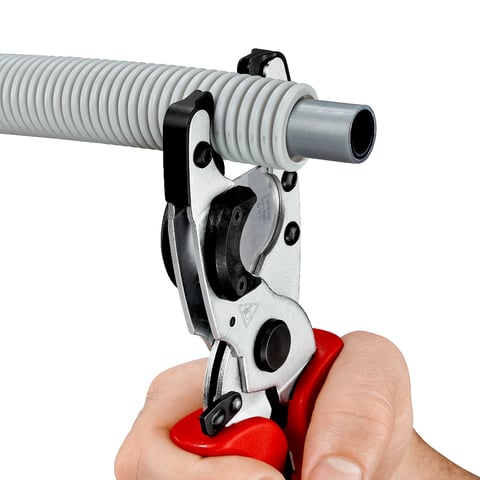

- For cutting many corrugated plastic pipes from Ø 18 to 35 mm without damaging internal cables or pipes
- Clean, smooth and burr-free cut surfaces
- With opening spring and locking device
- Not suitable for cutting cables
Technical attributes
Part No.
90 25 20
EAN
4003773046004
pliers
chrome-plated
Handles
with multi-component handles
Weight
318 g
Dimensions
210 x 70 x 20 mm
REACH compliant
contains SVHC
RoHS compliant
not applicable
Cutting capacities composite pipes
Ø 26 mm
Blade length
25 mm
Cutting capacities protective tubes
Ø 18 - 35 mm
Brief overview

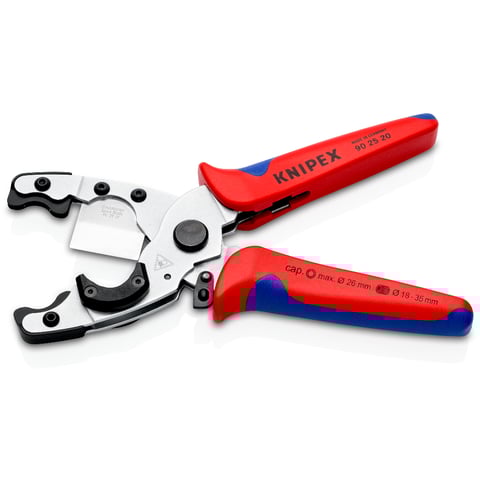

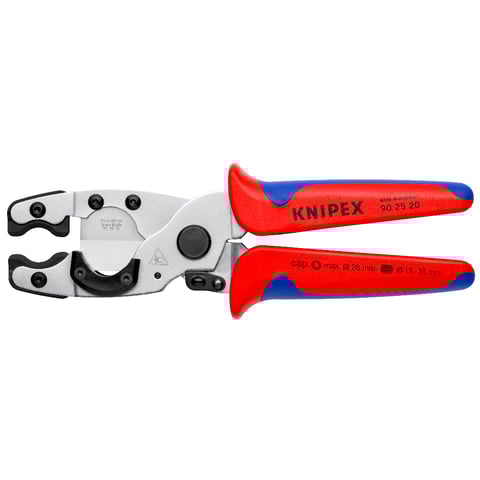

Patented pipe cutter with two cutting areas for plastic composite pipes and flexible protective pipes
Cutting capacities for composite pipes Ø 12 - 25 mm
Cutting capacities for protective pipes Ø 18 - 35 mm
Moving jaws locate the pipe at right angles to the blade: for right-angled cuts
Body of the tool made from high-grade chrome vanadium electric steel, oil-hardened
Replaceable blade made from special tool steel, oil-hardened
Handles with multi-component grips
Length 210 mm
Weight 332 g
