97 33 03KNIPEX MultiCrimp®Crimping Pliers with changer magazine
97 33 03
KNIPEX MultiCrimp®
Crimping Pliers with changer magazine
- Universal, high-performance crimping pliers of professional quality for photovoltaic systems

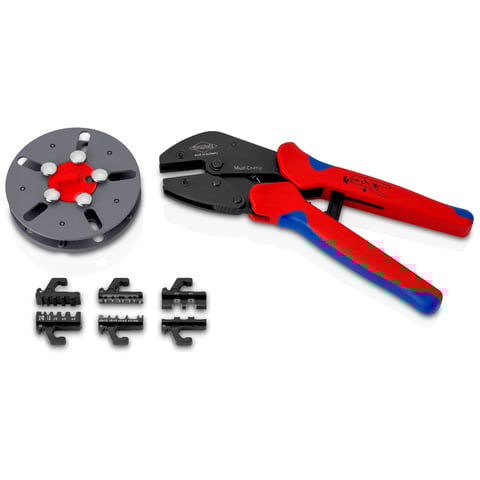

- Just one tool with three crimping dies for MC4® / MC4® Evo 2, uninsulated cable connectors and wire ferrules

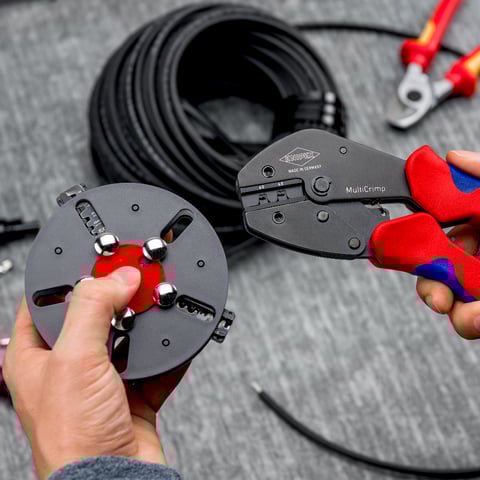

- Quick and easy change of crimping dies without additional tools
- For PV cables, earthing conductors and cabling to the meter cabinet

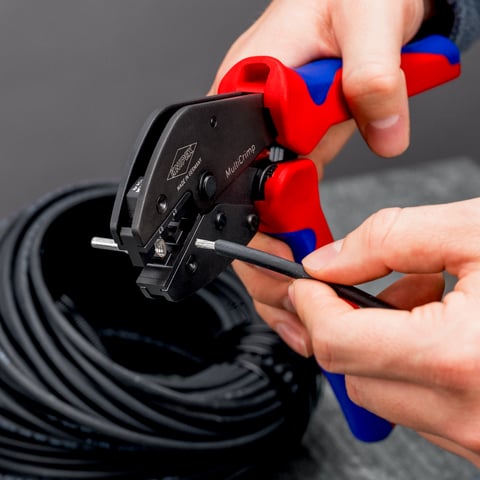

- Crimps connectors for PV conductors - with crimping die 97 39 42 for MC4® and MC4® Evo 2 connectors in 4 and 6 mm²
- Crimps connections of e.g. earthing cables - with crimping die 97 39 13 for uninsulated cable connectors in 0.5 - 10 mm²
- Crimps conductors from the inverter to the meter cabinet - with crimping die 97 39 08 for insulated and uninsulated wire ferrules in 0.25 - 6 mm²

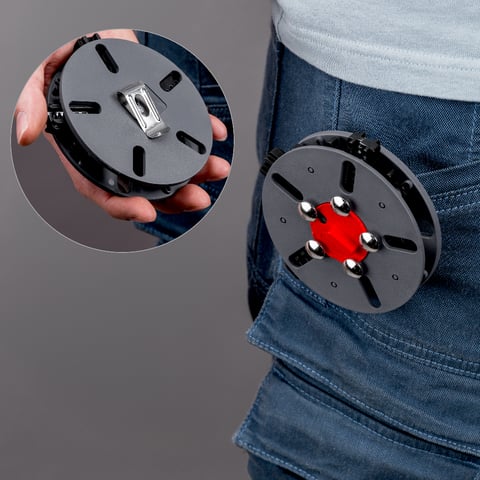

- Safe and secure storage of the interchangeable dies in a round magazine for up to 5 crimping dies
- Customizable with optional crimping dies 97 39 05/06/09
- Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable)
- The crimping dies 97 49 xx of crimping system pliers 97 43 200 are not compatible with the KNIPEX MultiCrimp 97 33 01/02/03
Technical attributes
EAN
4003773092599
pliers
burnished
Handles
with multi-component handles
Weight
885 g
Dimensions
240 x 75 x 28 mm
REACH compliant
contains SVHC
RoHS compliant
not applicable
Capacity in square millimetres
0.5 — 10.0 mm²
AWG
20 — 8
Documents
Suitable accesories
97 39 08
Die set For insulated and non-insulated wire ferrules 0,25 - 6 mm²
0,25 – 6,0 mm²
97 39 13
Die set For non-insulated cable connectors
0,5 – 10 mm²
97 39 42
Die set For MC4®/MC4® EVO 2 connectors with 4 / 6 mm²
