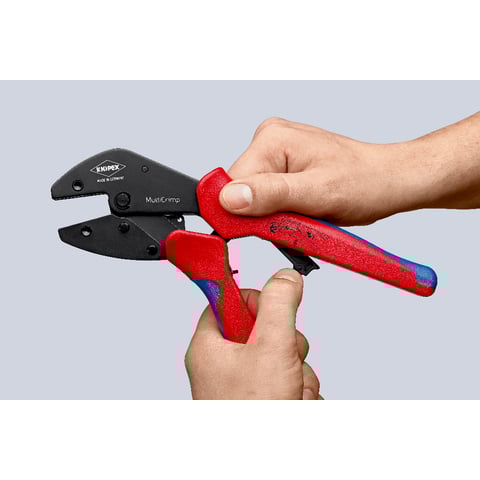

97 33 01KNIPEX MultiCrimp®Lever Action Crimping Pliers with changer magazine
97 33 01
KNIPEX MultiCrimp®
Lever Action Crimping Pliers with changer magazine
- The crimping dies 97 49 xx for the Crimp System Pliers 97 43 200 are not compatible with the KNIPEX MultiCrimp 97 33 01/02
- Just one tool for the most common crimping applications

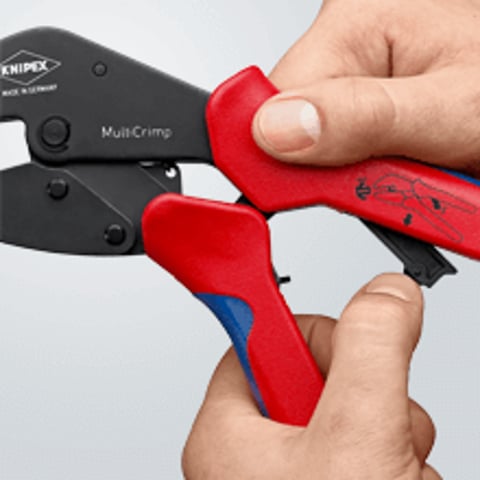

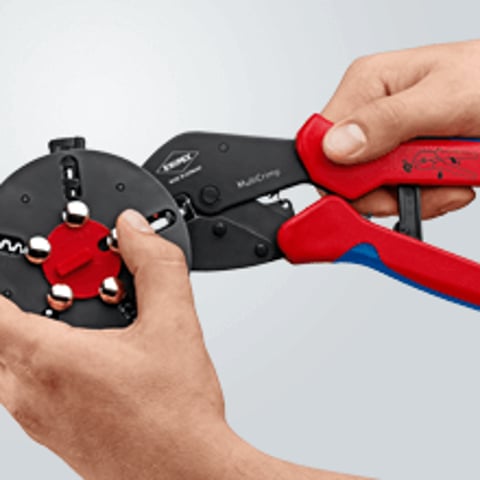

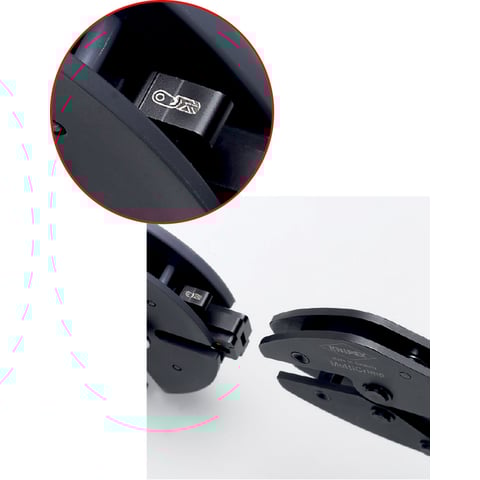

- Crimping dies changed quickly and easily without any additional tool

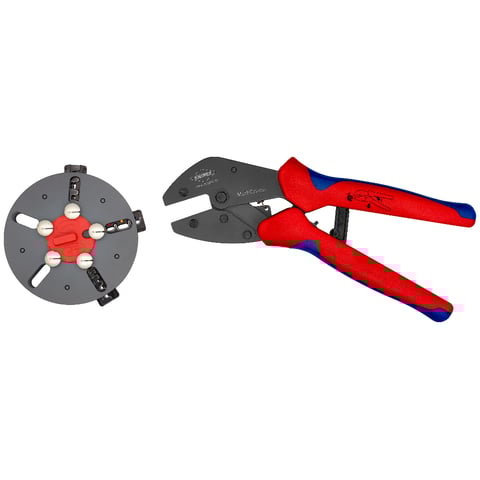

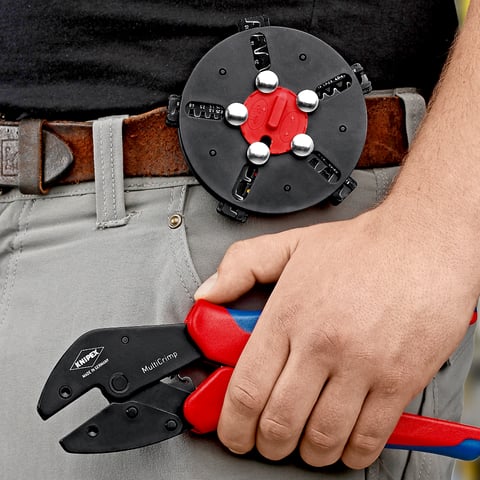

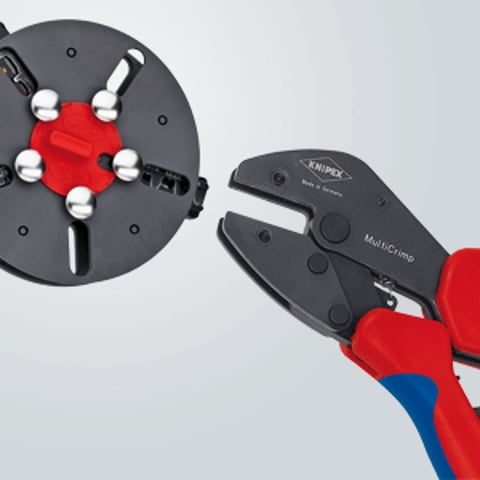

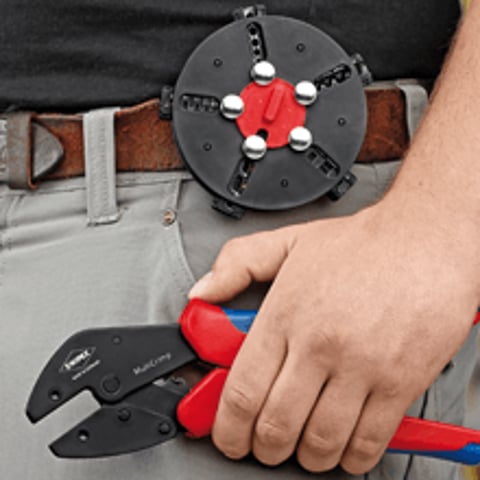

- Sorted and protected storage of the interchangeable dies in a round magazine
- Comfortable, powerful crimping pliers in professional quality
- Same reliable crimping results as with fixed crimping dies

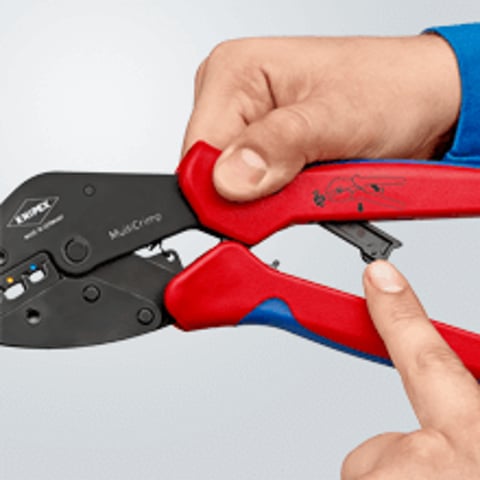

- Consistently high crimping quality thanks to precision dies and ratchet mechanism (unlockable)
Technical attributes
Article No.
97 33 01
EAN
4003773066927
Pliers
burnished
Handles
with multi-component grips
Weight
770 g
Dimensions
250 x 75 x 28 mm
REACH compliant
contains SVHC
RoHS compliant
not applicable
Application
non-insulated open plug type connectors (plug width 4.8 + 6.3 mm)
Capacity in square millimetres
0.25 — 6.0 mm²
Number of crimping positions
3
AWG
20 — 10
Brief overview
Crimping pliers with quick die change magazine and three crimping dies that can be switched without tools
Capacities: see detailed description
Length 250 mm
Net weight 770 g

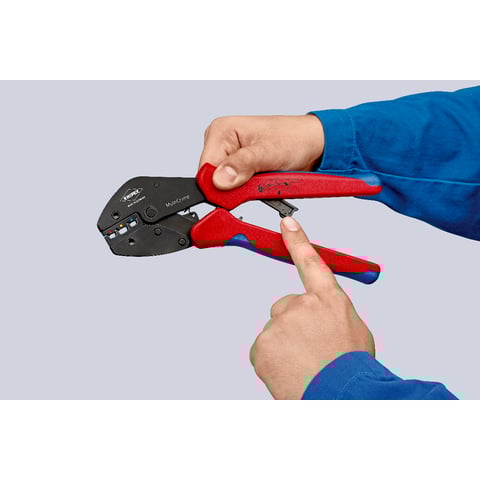

Integrated, very finely graduated integral lock, with release mechanism
Crimping pressure calibrated in the factory
Manufactured from high-grade chrome vanadium electric steel, oil-hardened
Handles with multi-component grips
Suitable accesories
97 39 05
Crimping die For non-insulated open plug type connectors (plug width 4.8 + 6.3 mm)
0,5 – 6,0 mm²
97 39 09
Crimping die For insulated and non-insulated wire ferrules
10 / 16 / 25 mm²
97 39 06
Crimping die For insulated terminals, plug connectors and butt connectors
0,5 6,0 mm²
97 39 08
Crimping die For insulated and non-insulated wire ferrules
0,25 – 6,0 mm²
97 39 13
Crimping die For non-insulated crimp terminals, tube and compression cable lugs in accordance with DIN 46234 and DIN 46235 and non-insulated crimp, butt and press connectors in accordance with DIN 46341 and DIN 46267
0,5 – 10 mm²
97 39 90
Changer magazine Empty
