16 50 145 SB
Stripping Knife
With guide shoe and ratchet function
- Ratchet function: easy cutting even for a variety of cable sheaths
- Versatile blade with three cutting areas for round and lengthwise cuts
- Guide shoe protects the conductor insulation under the cable sheath
- Cuts very hard or tough plastic sheaths up to 7 mm wall thickness

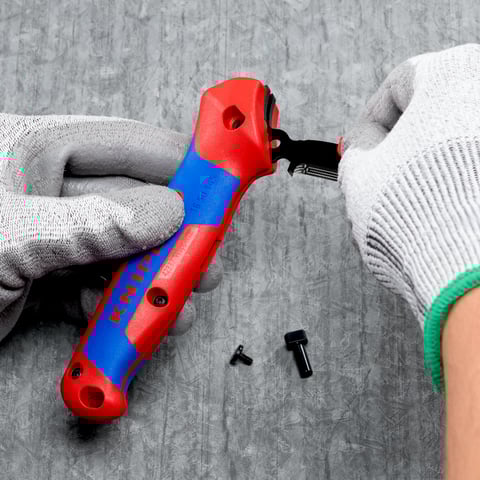

- Sickle-shaped, replaceable hook blade can be folded for safe transport

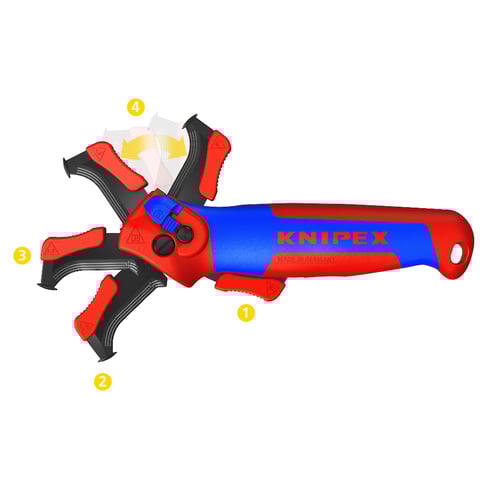

- Blade with four positions: folded, straight, angled and ratcheting
- Three-stage blade lock for safe handling and transport
- Ergonomically designed, comfortable handle
- Integrated tether attachment point for use with KNIPEX Tethered Tool System
Technical attributes
Part No.
16 50 145 SB
EAN
4003773089902
Handles
with multi-component handles
Weight
120 g
Dimensions
146 x 30 x 42 mm
REACH compliant
does not contain SVHC
RoHS compliant
not applicable

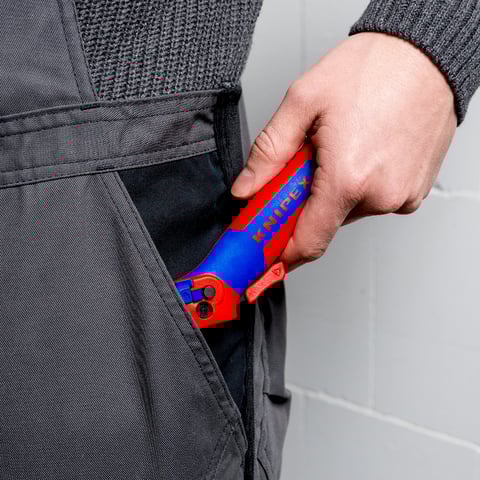

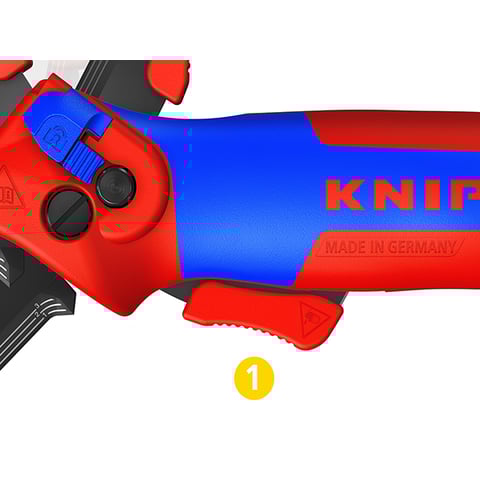

1. Transport position
The blade can be completely folded away for transport.

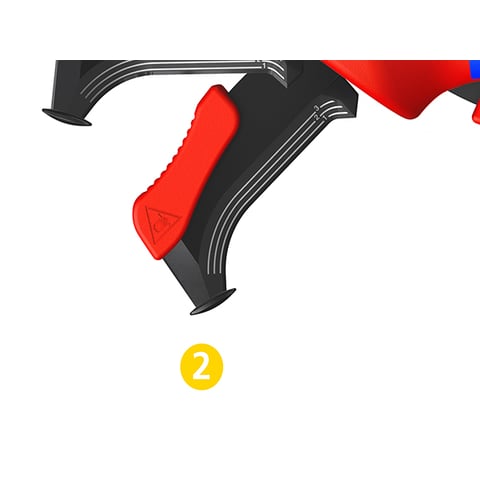

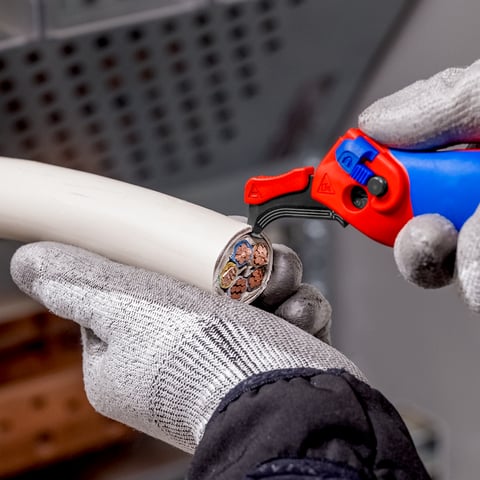

2. Cutting position for round cut
The raised blade area near the handle cuts easily around thicker sheaths and the scale helps to control the cutting depth.

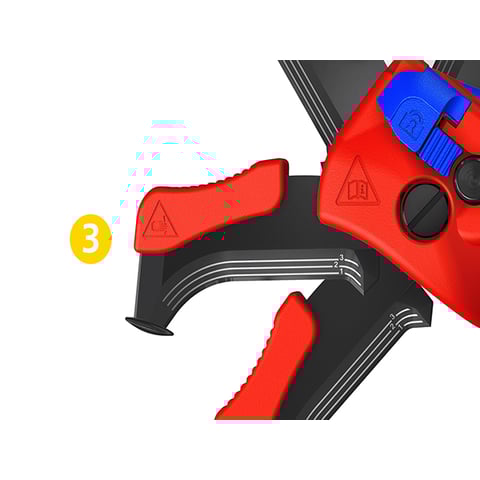

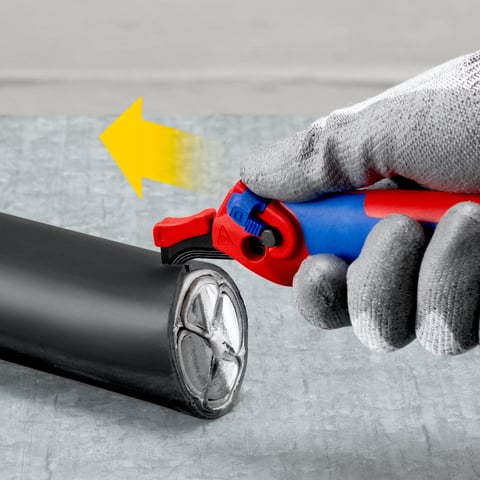

3. Cutting position for round and lengthwise cut
When aligned straight, the blade can be used for circumferential and longitudinal cutting, the latter by pulling or pushing.

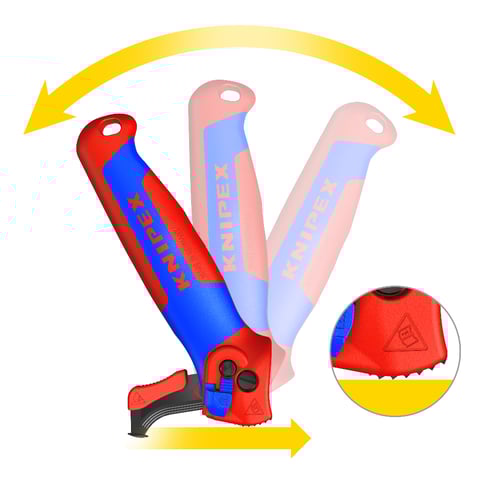

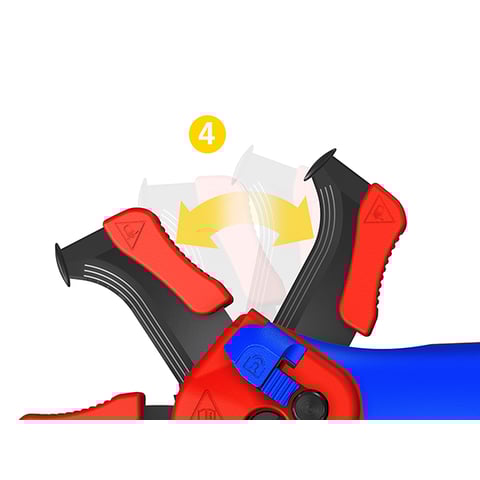

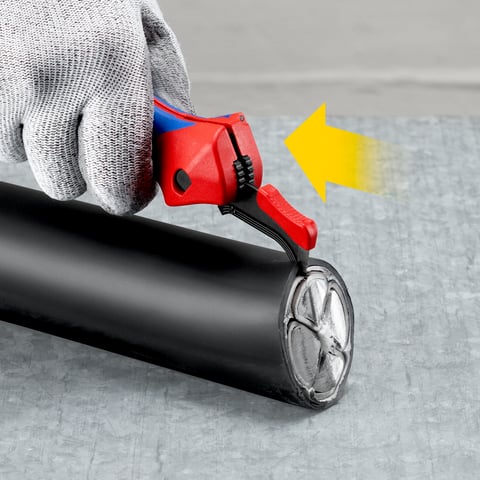

4. Cutting position for lengthwise cut with ratchet
In this position, the blade is movable and cuts even particularly thick or tough cable sheaths very easily thanks to the ratchet function.

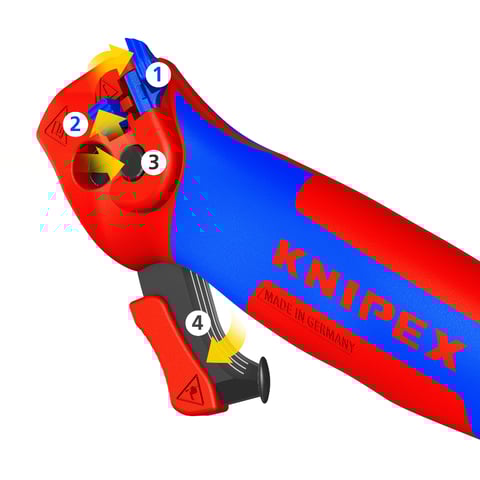

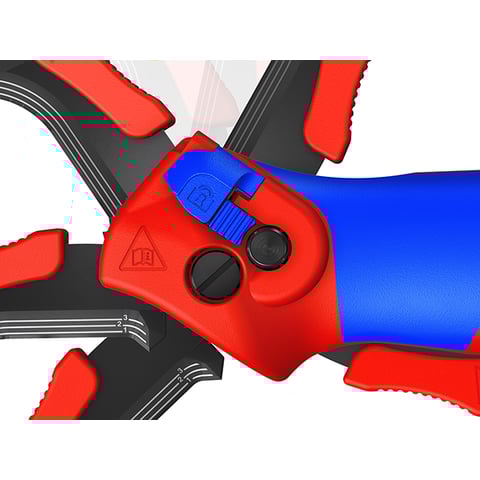

Three-stage blade lock
With safety lock, slider and push-button

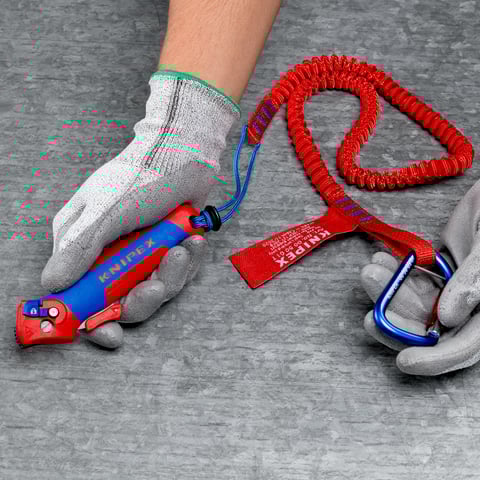

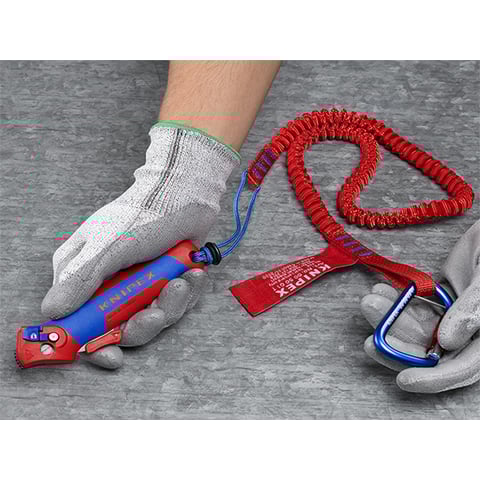

Tether attachment point
can be used with KNIPEX Tethered Tools System
