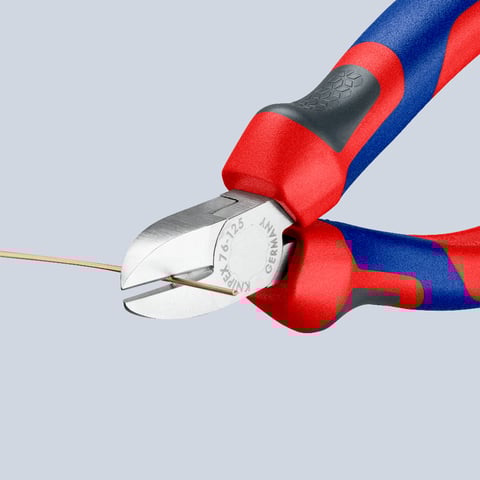

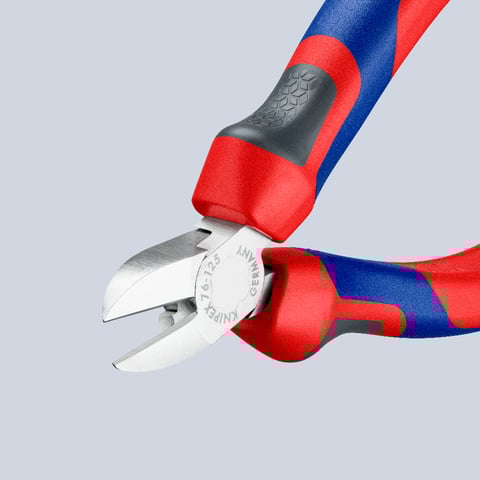

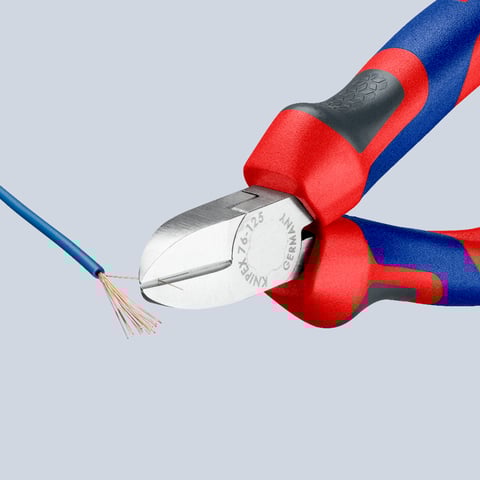

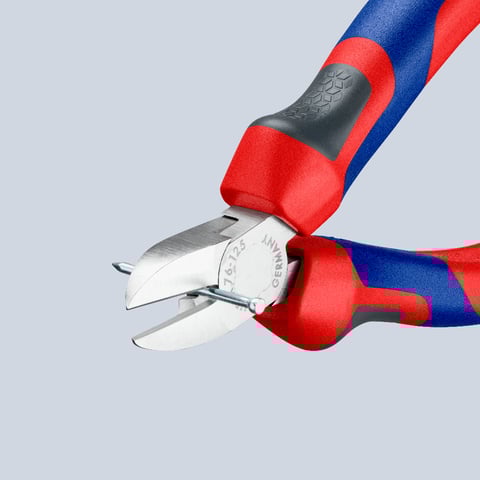

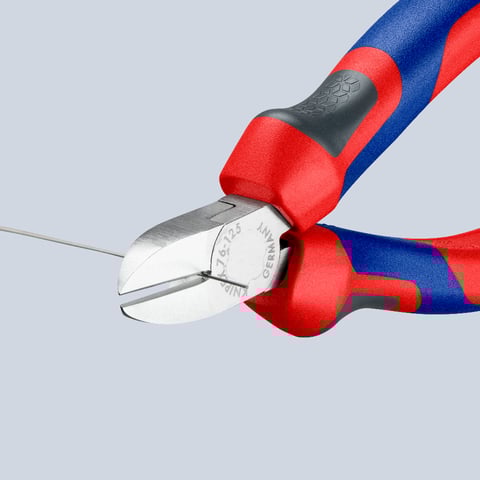

76 05 125
Diagonal Cutter
For electromechanics

cutting edges with bevel
  • With sharp, precisely aligned cutting edges
  • Cutting edges additionally induction-hardened, cutting edge hardness approx. 63 HRC
  • Lap joint
Technical attributes
Article No.
76 05 125
EAN
4003773005315
Pliers
chrome-plated
Head
chrome-plated
Handles
with multi-component grips
Weight
118 g
Dimensions
125 x 57 x 18 mm
Standard
DIN ISO 5749
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities medium hard wire (diameter) Cutting capacities medium hard wire (diameter)
Ø 2.3 mm
Schneidwerte harter Draht (Durchmesser) Schneidwerte harter Draht (Durchmesser)
Ø 1.5 mm
Cutting capacities piano wire (diameter) Cutting capacities piano wire (diameter)
Ø 0.6 mm
Cutting capacities soft wire (diameter) Cutting capacities soft wire (diameter)
Ø 0.4 – 3 mm
Jaw length (B)
16 mm
Jaw thickness (joint) (D)
9 mm
Head width (A)
14.5 mm

All variations

76 01 125
Diagonal Cutter For electromechanics
100-140 mm
atramentised / lacquered / burnished
plastic coated
Length: 125 mm
76 03 125
Diagonal Cutter For electromechanics
100-140 mm
chrome-plated / zinc-plated
plastic coated
Length: 125 mm
76 12 125
Diagonal Cutter For electromechanics
100-140 mm
atramentised / lacquered / burnished
multi-component grips
Length: 125 mm
76 22 125
Diagonal Cutter For electromechanics
100-140 mm
atramentised / lacquered / burnished
multi-component grips
Length: 125 mm
76 81 125
Diagonal Cutter For electromechanics
100-140 mm
atramentised / lacquered / burnished
plastic coated
Length: 125 mm
Technical changes and errors reserved.
