- Cutting capacity up to 48 HRC hardness
- Robust cutting edges are additionally induction-hardened, cutting edge hardness approx. 62 HRC
- Forged-in stopper with comfortable shock- absorber
- Good access due to very flat construction of head and joint area
- Ergonomically angled handles to minimise effort
- Sturdy non-slip two-colour multi-component handle sleeves

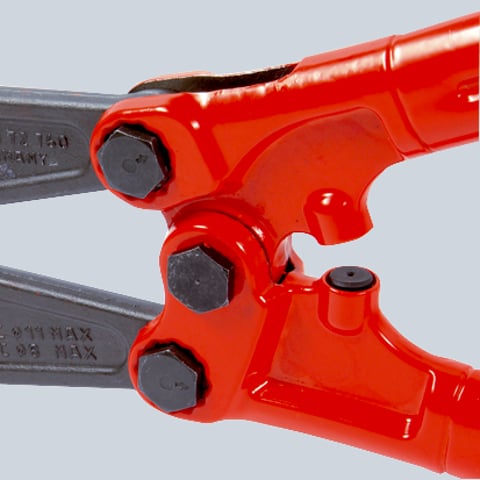

- Precise adjustment (12 positions) by eccentric bolt
- High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
- Bolted cutter head, replaceable
Technical attributes
Part No.
71 72 760
EAN
4003773066774
Head
grey atramentized
Handles
with multi-component handles
Weight
4,250 g
Dimensions
760 x 154 x 42 mm
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
HRC 19
Ø 11 mm
HRC 40
Ø 9 mm
HRC 48
Ø 8 mm
Cutting edge length mm
36.5 mm
Head thickness
42 mm
