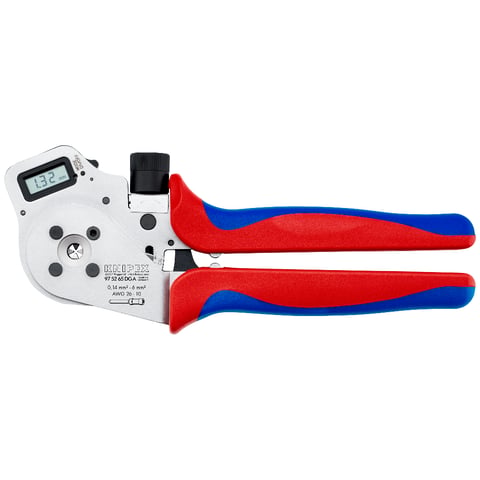

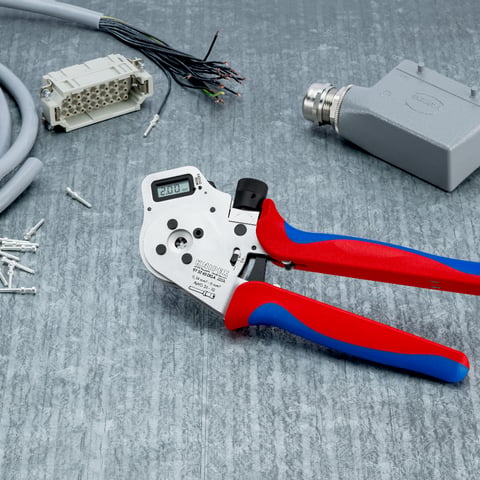

97 52 65 DG AFour-Mandrel Crimping Pliers for turned contacts
97 52 65 DG A
Four-Mandrel Crimping Pliers for turned contacts
- For crimping turned contacts
- Four-mandrel crimping for top-quality crimp connections

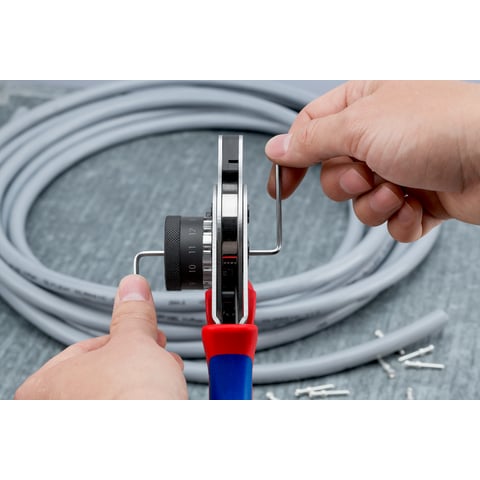

- Mandrel gauge to check the basic setting
- Repetitive, high crimping quality due to ratchet mechanism (unlockable)
- Optimum transmission of force due to highly effective lever action for fatigue-reduced operation
- High operation comfort thanks to handy shape
- Crimping capacity can be adjusted in increments of 0.01 mm
- With digital display of the preset crimping capacities and possibility of re-calibration via RESET function with electronic wear monitoring
- Adjustment in mm, inches or comparable selection positions according to MIL
- With table for calculating the settings
- Pliers in a plastic case with foam insert
- Without locator
Technical attributes
Article No.
97 52 65 DG A
EAN
4003773071990
Pliers
chrome-plated
Head
chrome-plated
Handles
with multi-component grips
Weight
633 g
Dimensions
250 x 86 x 19 mm
REACH compliant
contains SVHC
RoHS compliant
not applicable
Application
turned contacts (Harting; Ilme; Phoenix; Amphenol; Walther; HTS; Contact; Weidmüller)
Capacity in square millimetres
0.14 — 6 mm²
AWG
26 — 10
Number of crimp profiles
1
Max. contact diameter
7.5 mm
For calibration inquiries, please contact our affiliated company RENNSTEIG WERKZEUGE GMBH under the following contact:
Mr. Uwe Wagner
Tel .: +49 36 847 441-59
Domestic sales
Suitable accesories
97 59 65 2
Universal Locator for 97 52 65 / 97 52 65 A / 97 52 65 DG / 97 52 65 DG A
