77 32 130Electronics Diagonal CutterWith box joint
77 32 130

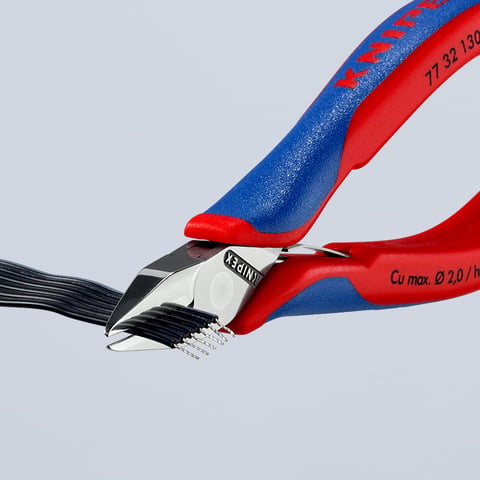

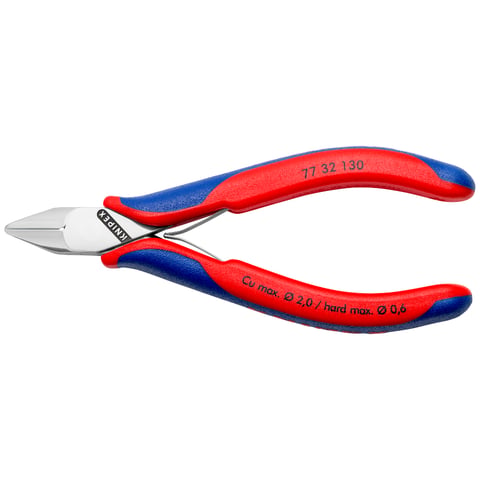

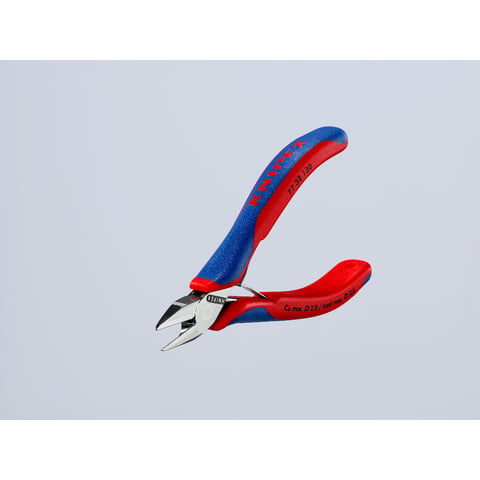

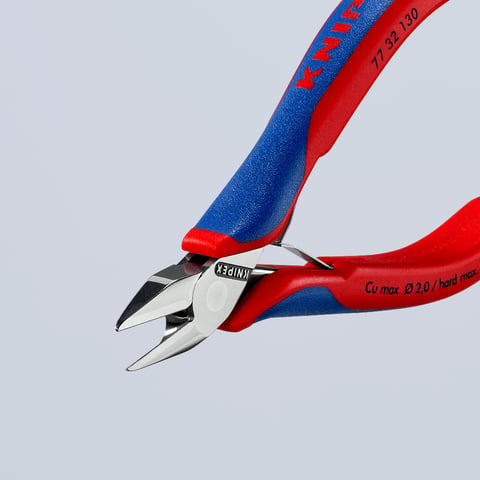

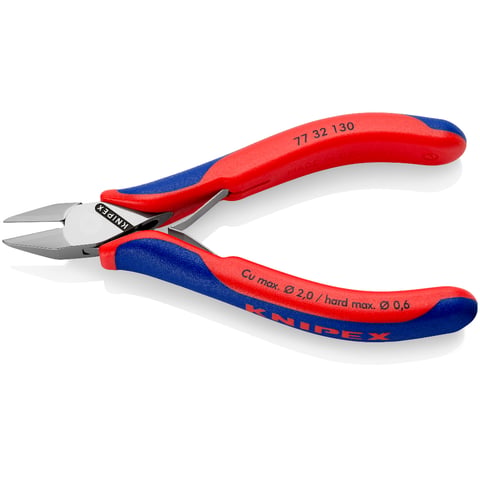

Electronics Diagonal Cutter
With box joint
- Durable, load-optimised design with backlash-free box joint
- High, slim sleeves for fine and comfortable gripping between thumb and index finger
- Less physical effort due to very high transmission ratio
- Load-optimised for a more direct feel when working
- Low-friction double spring for gentle and even opening
- The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
- Cutters additionally laser hardened, cutter hardness at least 62 HRC
- Pointed head, with small bevel
Technical attributes
Article No.
77 32 130
EAN
4003773089186
Head
mirror polished
Handles
with multi-component grips
Weight
80 g
Dimensions
130 x 74 x 17 mm
Standard
DIN ISO 9654
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities medium hard wire (diameter)
Ø 1.3 mm
Schneidwerte harter Draht (Durchmesser)
Ø 0.6 mm
Jaw thickness (joint) (D)
8.5 mm
Head width (A)
13 mm
Cutting edge length mm (C)
16.2 mm
